Eaton Internal Roller Swage Tooling Equipment

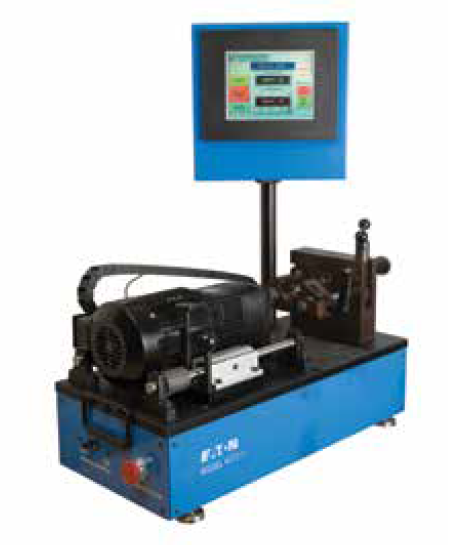

Eaton Universal Three-Groove Fittings Internal Swage Sleeve & Unions are high performance and light weight at nominal cost. Eaton’s Three-Groove Sleeve and Union fittings are attached by internally swaging (i.e. expanding) the tubing into annular grooves within the fitting by means of the roller expander. This is a proven technique which has been utilized by the industry for over 25 years. The main swaging element of internally swaged system is the roller expander supported with any of Eaton’s automatic (model 6777, 8777), semi-automatic (model 4777) swaging machines.
Features
- Extensively tested, approved and utilized by major aerospace manufacturers
- Fast and simple attachment method
- Proven technique which has been utilized by the industry for over 25 years
- Provides a positive, reliable metal-to-metal seal
- Surpasses the performance requirements of industry and government specifications
